T-1000J
T-SENSOR Remote Monitoring System (TMS)
TMS is a duct interior monitoring and photography system developed for temperature measurement, born from the fusion of innovative ideas and IoT technology.
It will be the world's first networked photography and measurement sensor.
Main application areas
- Ventilation systems (fire dampers, air supply and exhaust ducts, fans)
*Other locations where remote monitoring is necessary
Main functions
- Remote monitoring of interior areas with image capturing - Temperature measurements
- Alert function triggered by specified
Hidden areas become visible

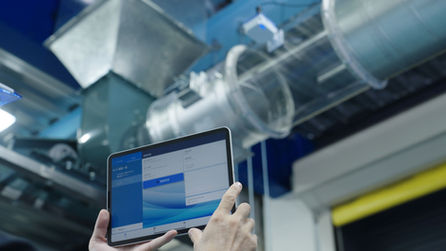

The product can be installed in ventilation systems (fire dampers, ducts, fans), tunnel ducts, fire zones, and other locations where remote monitoring is otherwise difficult to perform on a daily basis.

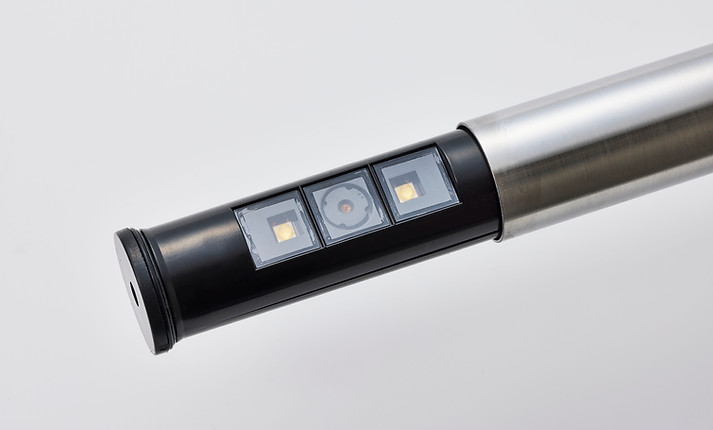

Retractable camera and temperature sensor
The camera is housed in a sensor pipe and operates and captures images only when in use.
Made of stainless steel and incorporating a unique dust ingress prevention function, the camera is protected against dust, dirt, and corrosion. This allows for stable use over a long period of time.
Captured images are equipped
with an authenticity function
JPEG images captured by the dedicated T-SENSOR app are equipped with
an authenticity function (tamper detection function) using technology described
in CRYPTREC, a list of ciphers that should be referenced for procurement
in e-government, part of the Ministry
of Land, Infrastructure, Transport and Tourism's initiative to digitize small blackboard information in digital construction photos.
Gallery
Model name
SPEC
T-1000J
Unit size
313.45mm
Sensor pipe
207.45mm
Compatible duct dimensions
100–900 mm
(100-250mm with small duct adapter )
Allowable operating temperature
When the camera is not in use: 0–70°C, 90% RH or less
When the camera is in use: 0–50°C, 90% RH or less
Waterproof and
dustproof construction
Camera unit in retracted position: Equivalent to IP54
(with camera unit in retracted position)
Resolution : SXGA (1280 x 1024)
Imaging function
Imaging range: Distance from subject of 40 cm or more
Imaging time: 20 sec
Rated voltage
DC 24V
Current consumption
Max 0.4A
Electrostatic discharge
Contact discharge of 4 kV and air discharge of 8 kV,
per IEC61000-4-2
Communication Module
BLE/Wi-Fi Combo module
outdoor use
Outside air temperature of 50°C or less
Country of use
JAPAN
Various standards
Bluetooth SIG certification / Wi-Fi certification / Technical conformity certification / RoHS compliance / REACH regulation compliance
